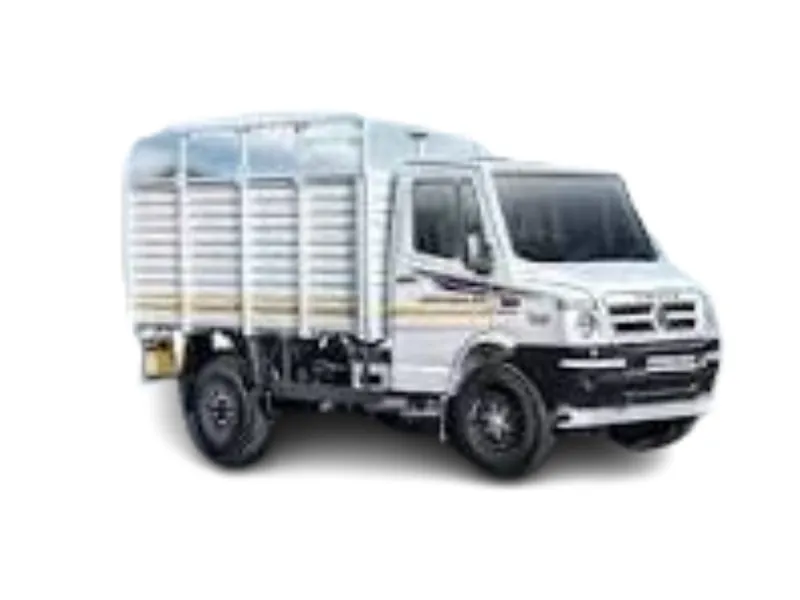

Force Motors Shaktiman 400 Base
Variants
Key Specifications of Force Motors Shaktiman 400 Base Truck
-
Fuel Tank Capacity
70 ltrs -
Wheelbase (mm)
3100 -
Max Torque
250 Nm @ 1400-2400 rpm -
Power Steering
Optional -
Seating Capacity
D+2 -
Engine Type
FM 2.6 CR
Specifications of Force Motors Shaktiman 400 Base
- Engine Model FM 2.6 CR
- Emission BS-IV
- Displacement 2596 cc
- Max Output 90hp (67kW) @ 2800 rpm
- Max Torque 250 Nm @ 1400-2400 rpm
- Transmission Type Synchromesh
- No. of gears 5 Forward-1 Reverse (5th gear – overdrive)
- Front Axle Dead Rigid
- Rear Axle Live Rigid
- Front Suspension Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers and Anti Roll Bar
- Rear Suspension Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers
- Steering Type Mechanical / Power Steering (Optional)
- Turning Radius 6.2m
- Service Brakes Hydraulic- Dual Circuit (Vacuum Assisted)
- Front Brakes Drum Brakes
- Rear Brakes Drum Brakes With LCRV
- Parking Brakes Mechanical, Acting on Rear Axle
- Wheel Size 8.25 X 16-16PR
- Wheelbase 3100
- Overall length (mm) 5170
- Overall Width (mm) 2030 HSD / 1980 FSD
- Overall height (mm) 2930HSD/2370FSD
- Overhang Rear (mm) 1200
- Overhang Front(mm) 870
- Cargo Box (L x W x H) 2970 X 1930 X 1200
- Ground Clearance 227
- Max. Permissible FAW 2400
- Max. Permissible RAW 3700
- Max. Permissible GVW 6100
- Rated Payload 3500HSD/3620FSD
- Fuel Tank 70 ltrs
- Seating Capacity D+2
