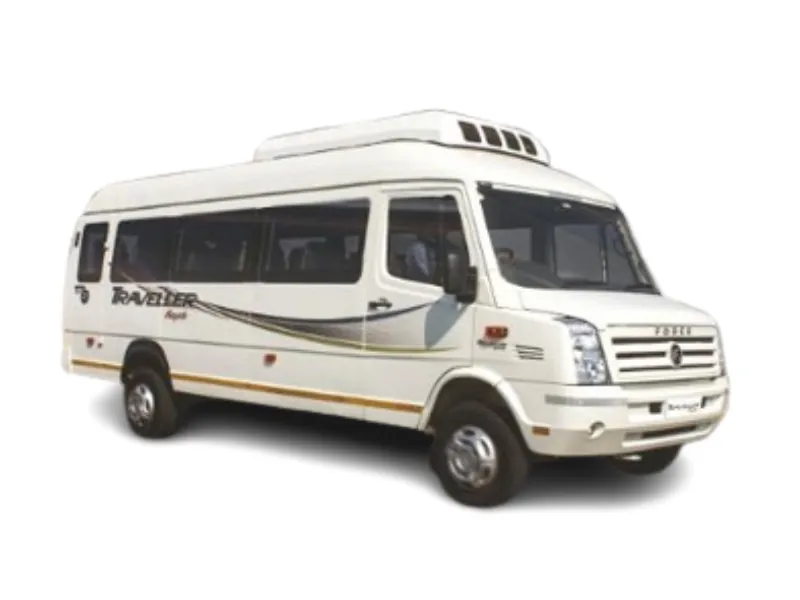

Force Motors TRAVELLER T1 3700 super 17+D Base

Specifications of Force Motors TRAVELLER T1 3700 super 17+D Base

• Engine Model FM 2.6 CR
• Emission BS IV
• Engine Type 4 Cylinder, Common Rail
• Displacement 2596 cc
• Max Output 90 HP (67 kw) @ 2800 rpm
• Max Torque 250 Nm@1400-2400 rpm
• Transmission Type Synchromesh
• No. of gears 5 Forward-1 Reverse (5th gear – overdrive)
• Front Axle Dead Rigid, I Beam ( Reverse Elliot Type)
• Rear Axle Live Rigid
• Front Suspension Semi Elliptical Leaf Springs with Hydraulic Shock Absorbers and Anti Roll Bar .
• Rear Suspension Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers
• Steering Type Mechanical / Power Steering (Optional)
• Turning Radius 6.5
• Service Brakes Hydraulic- Dual Circuit ,Vacuum Assisted ABS with EBD
• Front Brakes 4 – Piston, Ventilated, Disc brakes with wear indicator
• Rear Brakes Drum Brakes
• Parking Brakes Mechanical, on Rear Wheels
• Wheel Size 215/75 R 15
• Wheel Base 3700
• Overall Length 6065
• Overall Width 1900
• Overall Height 2770 (With AC)
• Overhang Front 900
• Overhang Rear 1465
• Ground Clearance 210
• Max. Permissible FAW 1780
• Max. Permissible RAW 2280
• Max. Permissible GVW 4060
• Fuel Tank Capacity 70L
• Seating Capacity D+17
