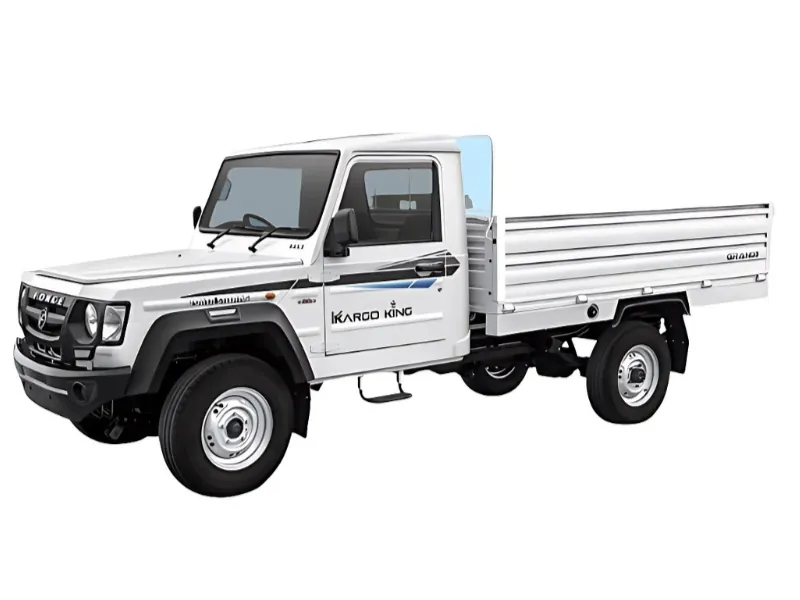

Force Motors TRAX KARGO KING Base
Variants
Key Specifications of Force Motors TRAX KARGO KING Base Truck
-
Fuel Tank Capacity
70L -
Max Torque
158 Nm @ 2000-2200 rpm -
Wheelbase (mm)
3050 -
Fuel Type
Diesel -
Power Steering
Yes
Specifications of Force Motors TRAX KARGO KING Base
- Engine Model FM 2.6 CR
- Emission BS-III
- Engine Type 4-Cylinder, DI
- Displacement 2596 cc
- Max Output 60hp@3200 rpm
- Max Torque 158 Nm @ 2000-2200 rpm
- Transmission Type Synchromesh
- No. of gears 5 Forward-1 Reverse (5th gear – overdrive)
- Front Axle Dead Rigid
- Rear Axle Live Rigid
- Front Suspension Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers and Anti Roll Bar
- Rear Suspension Semi Elliptical Leaf Spring with Hydraulic Telescopic Shock Absorbers
- Steering Type Power Steering
- Turning Radius 6.m
- Service Brakes Hydraulic- Dual Circuit (Vacuum Assisted)
- Front Brakes Disc Brakes
- Rear Brakes Drum Brakes
- Parking Brakes Mechanical, on Rear wheels
- Wheels & Tyres 7.00 R15
- Wheel Base 3050
- Overall Length 5032
- Overall Width 1660
- Overall Height 2105
- Overhang Front 727
