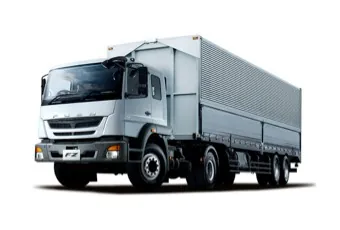

FUSO 4028 FZ 4x2

Specifications of FUSO 4028 FZ 4x2

• Model FZY1WFR2R
• Crew 3(1+2)
• Wheelbase 3600
• Overall Length 6030
• Overall Width 2490
• Overall height, approx. 2,975
• Front Tread 2,040
• Rear Tread 1,805
• Kerb weight * 6610
• Max. GVW 16200
• Max. GCW 40,200(Including three axle trailer)
• Max.speed 90 km/h
• Max.gradeability 30.6(Crawler)
• Engine Model 6S20, 6.37-liter, 3-valve per Cyl.
• Engine Type 4-stroke cycle, water cooled direct injection, turbocharged diesel engine
• Max.output 205kW/2,200rpm
• Max.torque 1,100Nm/1,200rpm to 1,600rpm
• Alternator 24V/80A
• Clutch Dry - Single plate, Hydraulic actuated control with servo assistance
• Transmission gear ratio 9.48 - 6.64 - 4.82 - 3.67 - 2.59 - 1.81 - 1.32 - 1.00 - Crawler 14.57 - Rev: 13.86
• Final reduction gear ratio 4.300
• Front Axle Capacity 6000
• Rear Axle Capacity 10200
• Front Tyre Single, 11.00R20/Option:295/80R22.5(Tubeless)
• Rear Tyre Dual, 11.00R20/Option:295/80R22.5(Tubeless)
• Suspension Front: parabolic Rear: semi-elliptic, with auxiliary spring
• Service Brake Full air, S-cam, dual circuit
• Fuel Tank Capacity 380 L
• Electrical system - batteries 2x12V, 120Ah
• Wheel Coupling Height 253(with mounting bracket)
• Optimum King pin offset 350
